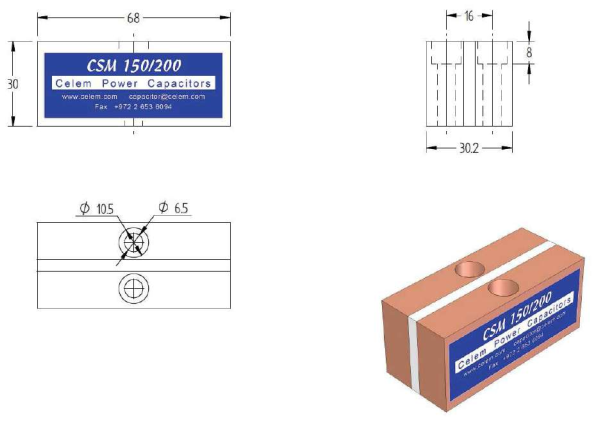

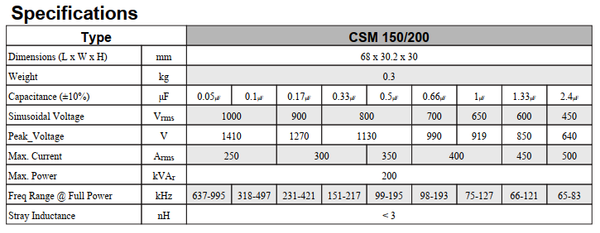

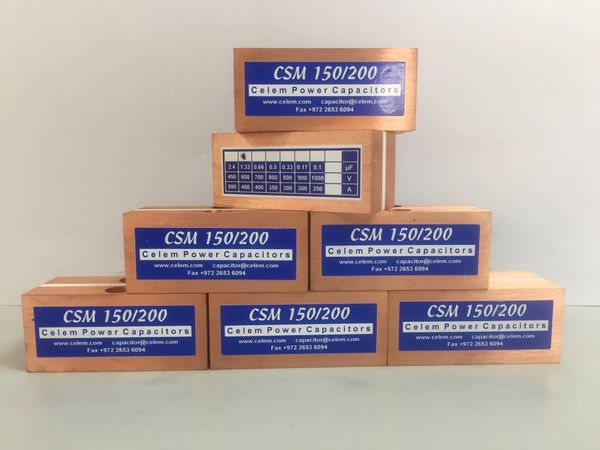

The CSM 150/200 conduction-cooled capacitor is designed for high frequency applications requiring up to 200 kVAr of power. It
offers superior electrical characteristics in the same physical dimensions as the popular CSM 150. The CSM 150/200’s unique
patented structure enables rapid mounting and dismounting of the capacitor, making it ideal for parallel and serial capacitor
combinations. Celem AS 150/3 and the AS 150/5 assembly systems are ideal for creating CSM 150/200 assemblies. Please note that
the newer CSM 150/300 has the same physical dimensions as the CSM 150/200 but is rated for higher voltage and higher current
and can carry up to 300kVAr
